Industrial Osmosis Plant
Home / Industrial Osmosis Plant
ROTEK Reverse Osmosis Systems feature an excellent pre-treatment design with high quality components to offer high performance. ROTEK systems are designed for high recovery rates and minimum energy consumption. Experience greater savings with lower maintenance and operation costs when you install a ROTEK Reverse Osmosis System.
- Specialized Micro-Computer Controller
- Fully Equipped and Customizable
- High Recovery Rate
- Low Energy Consumption
- High Flow Low-Energy Membranes
- Low Maintenance
- Compact Space Saving Design

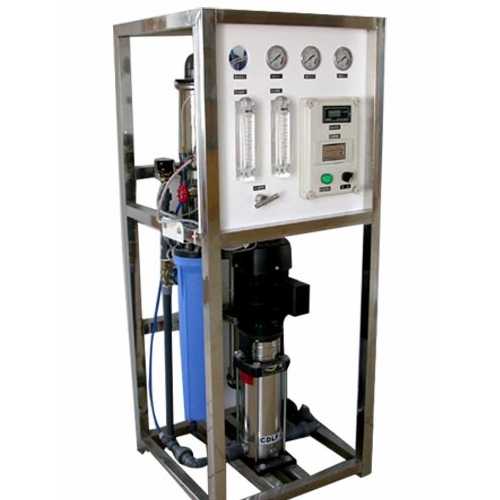

Product Description
ROTEK compact commercial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will ast for many years. RT series systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 2,000ppm.
Models are available with permeate outputs of between 300 and 1000 litres/r as shown in the specifications tables.
Specifications
| Specification / Models | RT 2000 | RT 3000 | RT 4500 | RT 6000 | RT 8000 |
|---|---|---|---|---|---|
|
Capacity
GPD / LPH
|
2000 / 300 | 3000 / 500 | 4500 / 700 | 6000 / 1000 | 8000 / 1200 |
|
Working Pressure
PSI / BAR
|
150-200 / 10-14 | ||||
| Pre-Filtration | ( 20" Filter Housing * 2 ) + ( 20" PP Centrifugal 5u + 1u ) | ||||
| Booster Pump | Rotary Van Pump + Motor (1HP) | Multi Staged Centrifugal Pump (3HP) | |||
| Membrane Meterial | T.F.C with FRC outer wrap | ||||
| Membrane Size X Unit | 4040 * 1 | 4040 * 2 | 4040 * 2 | 4040 * 3 | 4040 * 4 |
| Membrane Housing Meterial | High Pressure FRP end port type | ||||
| Membrane Size X Unit | 4040 * 1 | 4040 * 2 | 4040 * 2 | 4040 * 3 | 4040 * 4 |
| Flow Meters | Permeate / Concentrate | ||||
| Pressure Gauges | Feed Water Pressure / Booster pump outlet pressure gauges | ||||
| Water Quality Indicator | T.D.S meter with LCD | ||||
| Electrical Controls | Micro-Computer controls , overload breakers , LED Indicators | ||||
| Frame | Electro-polished stainless steel 304 | ||||
| Frame | 87 KG | 101 KG | 113 KG | 132 KG | 145 KG |
Feed Water Parameters
| Turbidity (SDI) | < 5 |
| T.D.S | < 2000 ppm |
| Temperature | +5 to +40 °C |
| Free Chlorine | 0 ppm |
| pH | 3-11 |
| Iron | < 0.01 ppm |
Dimension
