Industrial Water Treatment Spare parts
Home / Industrial Water Treatment Spare parts

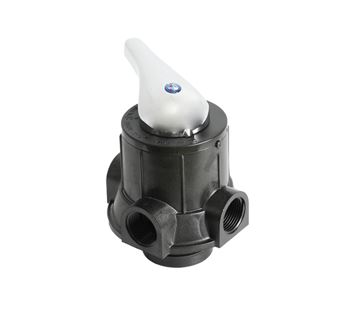

| Model | F56A1/A2（51104/51204） |
| Handle material | Handle material Metal/plastic |
| Mount type | Top mount |
| Inlet/outlet | 1"F |
| Drain | 1"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD） |
| Flow rate | 4m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
| 2 GPM 1/2'' Inlet & Outlet |
| 6 GPM 1'' Inlet & Outlet |
| 12 GPM 1'' Inlet & Outlet |
| 24 GPM 1'' Inlet & Outlet or Above |

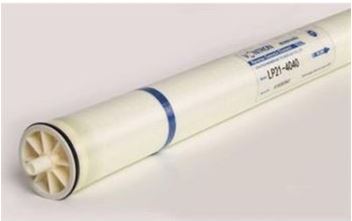

| Model | Active Membrane Area ft2 (m2) | Permeate Flow GPD (m3/d) | Stable Rejection Rate % | Feed Spacer Thiknesss mil |
| ULP32-8040-440 | 440 (40.9) | 12650 (47.9) | 99.3 | 28 |
| ULP22-8040 | 400 (37.2) | 12100 (45.8) | 99.0 | 28 |
| ULP32-8040 | 400 (37.2) | 10500 (39.7) | 99.5 | 28 |
| ULP32-8040/31 | 400 (37.2) | 10500 (39.7) | 99.5 | 31 |
| ULP4040-PRO | 100 (9.3) | 2000 (7.6) | 99.7 | 28 |
| ULP21-4040 | 100 (9.3) | 2600 (9.8) | 99.5 | 28 |
| ULP31-4040 | 100 (9.3) | 2000 (7.6) | 99.6 | 28 |
| ULP21-4021 | 36 (3.3) | 950 (3.6) | 99.0 | 28 |
| ULP21-2540 | 30 (2.8) | 750 (2.8) | 99.0 | 28 |
| ULP21-2521 | 14 (1.3) | 300 (1.1) | 99.0 | 28 |
